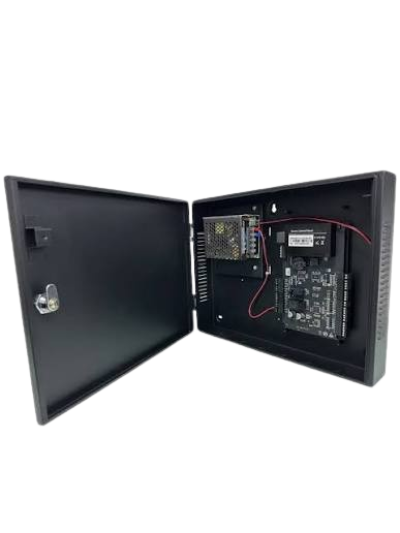

C3-100 Plus Pack B บอร์ดพร้อมตู้
SKU : C3-100 Plus Pack B บอร์ดพร้อมตู้
คำอธิบายสินค้าแบบย่อ
ZKTeco's C3 Plus series is an IP-based controller offering RFID cards and dynamic QR code authentication for access control solutions. The C3 Plus series includes three models: C3-100 Plus, C3-200 Plus, and C3-400 Plus. This series is designed for small—to medium-sized enterprises and can handle up to 100,000 multi-tech card users and 100,000 dynamic QR code transactions. The C3 Plus series has RS-485 interfaces, which ZKTeco's RS-485 protocols and OSDP (Ver 2.1.7) for accessing card readers. It is also compatible with ZKTeco's QR code reader, including QR50, QR500, and QR600. C3 Plus series is highly versatile, with the Wiegand interface (Wiegand format: W26/W34/W66) for seamless integration with third-party access control readers. The C3 Plus Series levels up data storage encryption by AES 256-bit algorithm. Also, C3 Plus Series adopts the AES 128-bit algorithm encryption to ensure the communication between controller, readers and I/O expansion boards secure. Also, the C3 Plus Series support HTTPS / TLS1.2 protects communications between the server and the web client.
| ชื่อรุ่น | C3-100 Plus C3-200 Plus C3-400 Plus |
|---|---|
| ระบบปฏิบัติการ | Linux OS |
| ฮาร์ดแวร์ | CPU: Single Core @ 1.0GHz RAM: 128MB; ROM: 256MB |
| วิธีการยืนยันตัวตน | Card / Password / QR Code |
| ความจุจุดเชื่อมต่อ | C3-100 Plus: 1 Access Point C3-200 Plus: 2 Access Points C3-400 Plus: 4 Access Points |
| ความจุของเครื่องอ่าน | C3-100 Plus: 2 * RS-485 Readers (ZKTeco RS-485 / OSDP), 2 * 26 / 34 / 66 bit Wiegand Readers C3-200 Plus: 4 * RS-485 Readers (ZKTeco RS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers C3-400 Plus: 8 * RS-485 Readers (ZKTeco RS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers |
| ความจุของบอร์ดขยาย IO | 8pcs EX0808 (RS-485 connection) |
| ความจุผู้ใช้ | 100,000 |
| ความจุบัตร | 100,000 (1:N) (Standard) |
| ความจุรหัส QR | 100,000 (Static QR Code / Dynamic QR Code) |
| ความจุ log | 500,000 (Standard) |
| จำนวนอินพุต | C3-100 Plus: 1 * Exit Button, 1 * DoorStatus, 1 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board) C3-200 Plus: 2 * Exit Button, 2 * DoorStatus, 2 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board) C3-400 Plus: 4 * Exit Button, 4 * DoorStatus, 4 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board) |
| จำนวนเอาต์พุต | C3-100 Plus: 1 * Form C Relay forLock, 1 * Form C Relay forAux Output or 64 (with 8pcs of EX0808 IO expansion board) C3-200 Plus: 2 * Form C Relay forLock, 2 * Form C Relay forAux Output or 64 (with 8pcs of EX0808 IO expansion board) C3-400 Plus: 4 * Form C Relay orLock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board) |
| ความยาวสูงสุดของบัตร | Supports up to 66 bits Card Length |
| QR Code | QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects. Dynamic QR codes on the ZKBio CVAccess mobile application. |
| การสื่อสาร | C3-100 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP * 1; Wiegand (Input) * 2; USB: Type A (USB Drive Only) * 1; Aux Inputs * 1; Aux Outputs * 1; Electric Lock * 1; Door Sensor * 1; Exit Button * 1; Alarm * 1 C3-200 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 2; Aux Outputs * 2; Electric Lock * 2; Door Sensor * 2; Exit Button * 2; Alarm * 2 C3-400 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP *1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4; Aux Outputs * 4; Electric Lock * 4, Door Sensor * 4; Exit Button * 4; Alarm * 4 |
| ฟังก์ชั่นมาตรฐาน | Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods |
| อินเทอร์เฟซควบคุมประตู | Wiegand (Card Reader) RS-485 (RS-485 Card Reader / QR Code Reader) |
| แหล่งจ่ายไฟ | 9.6V - 14.4V DC |
| อุณหภูมิในการทำงาน | 0 to 45 |
| ความชื้นในการทํางาน | 20% to 80% RH (Non-condensing) |
| ขนาด | C3-100 Plus: 175 mm * 99 mm * 19.3 mm (L*W*H) C3-200 Plus: 175 mm * 99 mm * 19.3 mm (L*W*H) C3-400 Plus: 215.88 mm * 99.14 mm * 19.3 mm (L*W*H) |
| น้ำหนักรวม | Gross Weight C3-100 Plus: 0.263 Kg C3-200 Plus: 0.296 Kg C3-400 Plus: 0.357 Kg |
| น้ำหนักสุทธิ | Net Weight C3-100 Plus: 0.158 Kg C3-200 Plus: 0.190 Kg C3-400 Plus: 0.252 Kg |
| ซอฟต์แวร์ | ZKBio CVAccess |
| การติดตั้ง | Supported Wall-mount with Metal Enclosure (Optional) |
| ตัวครอบ (อุปกรณ์เสริม) | C3-100 Plus / C3-200 Plus: Size: 350 mm * 90 mm * 300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC, output 12V 4A+1A DC; Backup Battery: Space reserved [Recommended Backup Battery size: 151 x 94 x 65 mm (L*W*H)]; Gross Weight: 3.35Kg C3-400 Plus: Size: 350 mm * 90 mm * 300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC, output 12V 4A+1A DC; Backup Battery: Space reserved [Recommended Backup Battery size: 151 x 94 x 65 mm (L*W*H)]; Gross Weight: 3.56Kg |
| การรับรอง | ISO14001, ISO9001, CE, FCC, RoHS |
| รหัสโรงงาน | C3-100 Plus: AC02-C11H-U10 C3-200 Plus: AC02-C12H-U10 C3-400 Plus: AC02-C14H-U10 |
