LockerPad-7B
SKU : LockerPad-7B
คำอธิบายสินค้าแบบย่อ

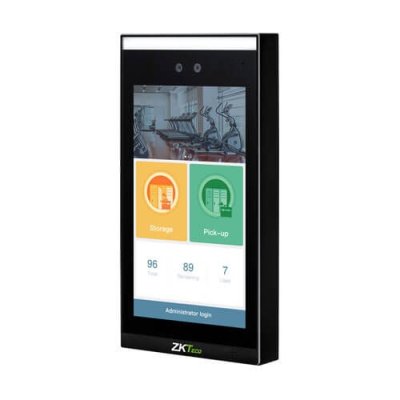

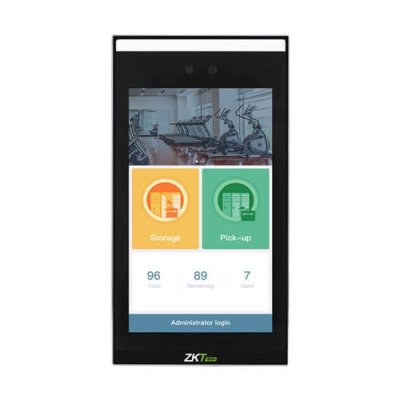

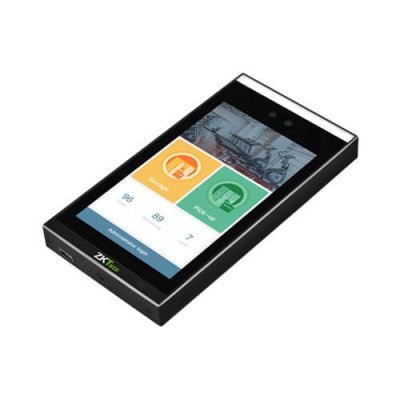

ZKTeco developed a networked electronic delivery locker module - LockerPad-7B, offering a reliable, secure, and convenient locker system.
LockerPad-7B integrates with ZKBio CVSecurity and adopts multiple authentication methods, including facial recognition, and multi-tech card verifification, to unlock the locker without a key, ensuring storage safety and enhancing convenience.
Also, ZKTeco offers multi-tech card readers that integrate with the LockerPad-7B, including ProID Series, QR600 Series, and QR500 Series.
พารามิเตอร์
ดาวน์โหลด
| Capacity | |
|---|---|
| Cabinet Capacity | 96 ( *support connection with up to 8pcs Lock Control Board through RS485 connection) |
| Face | 10,000 (1 : N) |
| Card | 10,000 |
| Transactions | 200,000 |
| System | |
| CPU | High Performance 4 core 1.8GHz CPU |
| Memory | 2G RAM / 16G ROM |
| Operating System | Android 5.1.1 |
| Communication | TCP/IP, USB Host, RS232, RS485, Wiegand Input, Wiegand Output, Wi-Fi, WLA |
| Software | ZKBio CVSecurity |
| Function | |
| Standard Firmware Functions | Multiple people and one cabinet setting, Temporary takeout settings |
| Facial Recognition | Facial Recognition Speed: Within 1s Facial Recognition Distance: 20cm to 50 cm |
| Card Types | 125KHz ID (Standard) 13.56MHz IC Card / Multi-tech Card Module (Optional) |
| Operating Environment | |
| Operating Temperature | -10°C to 45°C (14°F to 113°F) |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -15°C to 55°C (5°F to 131°F) |
| Storage Humidity | <90% |
| Interface | |
| Peripheral interface | USB*1, Network Port*1, RS485*1, TXD*2, RXD*2, INWD*1, WD*1, AUX*1, SEN*1, BUT*1, NO*1, NC*1, COM*1, AL*1 |
| Other | |
| Screen | 7-inch LCD Touch Screen (720*1280 pixels) |
| Camera | 2MP Dual Lens |
| Power Supply | DC 12V 3A |
| Dimensions | 113*210*22 (mm) / 4.4*8.3*0.87(inch) |
