ZKX6040A
SKU : ZKX6040A
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

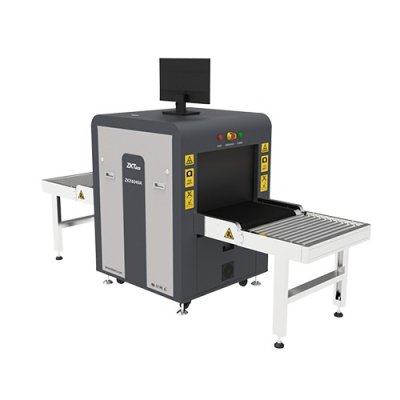

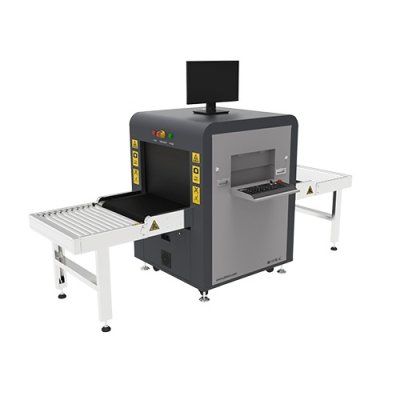

ZKX6040A X-ray Inspection System features a tunnel opening of 600 mm (W) x 400 mm (H) and is designed for  scanning briefcases, carry-on luggage, and small cargo packages, its compact design and foldable keyboard make it highly mobile, allowing it to be placed in hotels, shopping malls, transportation hubs, and similar locations.
The ZKX6040A X-ray Inspection System uses reliable, high-quality X-ray generators and detectors, as well as  superior image algorithms, to provide clear scanning images. This allows operators to visually identify potential  threat items.
āļāļēāļĢāļēāļĄāļīāđāļāļāļĢāđ
| Tunnel Size (W à H) | 600mm à 400mm |
|---|---|
| Conveyor Speed | 0.30 m/sec |
| Conveyor Load (Max. Load) | 120kg (Adequate distribution) |
| Conveyor Height | 680mm |
| Detector | Single-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
| Dimensions (L à W à H) | 1701mm à 910mm à 1305mm |
| Package Dimensions (L à W à H) | 2110mm à 1140mm à 1540mm |
| Gross Weight (with Package) | 480kg |
| Net Weight | 380kg |
| Film Safety | ASA / ISO1600 |
| Certifications | CE-EMC, CE-MD |
| X-ray Generator & Image Performance | |
| Anode Voltage | 80 kV |
| Tube Current | 0.6 mA |
| Wire Resolution | 36 AWG |
| Steel Penetration | 8 mm |
| Spatial Resolution | Horizontal ÎĶ1.3mm / Vertical ÎĶ1.3mm |
| Penetration Resolution | 30 AWG |
| Generator Cooling | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-ray Converter Type | L-shaped Detector Line |
| Computer Specification | |
| Operating System | Windows 10 |
| RAM | 8 GB |
| Hard Drive | 128GB SSD + 2TB HDD |
| Max. Storage | Up to 200,000 Scanned Images |
| Operating Environment | |
| System Power | 220 VAC Âą10% 50/60Hz 110 VAC Âą10% 50/60Hz |
| Power Consumption | < 300W |
| Noise Level | < 58 dB(A) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Working Humidity | 595%, Non-condensing |
| Health & Safety | |
| Radiation Leak Dosage | < 0.3 ΞSv/h (10cm From the Surface) |
