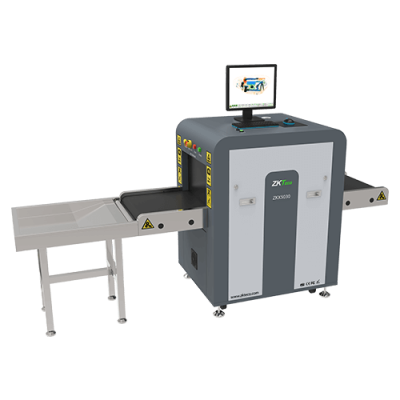

ZKX5030A
SKU : ZKX5030A
คำอธิบายสินค้าแบบย่อ
ZKX5030A X-ray Inspection System features a tunnel opening of 500 mm (W) x 300 mm (H) and is designed for scanning briefcases, carry-on luggage, and small cargo packages. Its compact design and small footprint make it easy to relocate and pass through narrow doorways. It is intended for use in stadiums, shopping malls, hotels, and similar locations.
The ZKX5030A X-ray Inspection System uses reliable, high-quality X-ray generators and detectors, as well as superior image algorithms, to provide clear scanning images. This allows operators to visually identify potential threat items.
* Kindly note: ZKX5030A equipped with a computer keyboard
พารามิเตอร์
ดาวน์โหลด
| General Specifications | |
|---|---|
| Tunnel Size | 500mm * 300mm |
| Conveyor Speed | 0.20m/sec |
| Conveyor Load | 120kg (Adequate distribution) (Max. Load) |
| Conveyor Height | 650mm |
| Detector | Single-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
| Dimensions (L*W*H) | 1701mm * 796mm * 1150mm |
| Package Dimensions (L*W*H) | 2000mm * 1000mm * 1500mm |
| Gross Weight | 410kg (with Package) |
| Net Weight | 340kg |
| Film Safety | ASA/ISO1600 |
| Certifications | CE-EMC, CE-MD, FCC sDOC, FDA |
| X-ray Generator and Image Performance | |
| Anode Voltage | 80 kV |
| Tube Current | 0.6 mA |
| Wire Resolution | 36AWG |
| Steel Penetration | 8mm |
| Spatial Resolution | HorizontalΦ1.3mm / VerticalΦ1.0mm |
| Penetration Resolution | 30AWG |
| Generator Cool | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-ray converter type | L-shaped Detector Line |
| Computer Specification | |
| Operating System | Windows 10 |
| Processor | N100 |
| RAM | 8 GB |
| Hard Drive | 128GB SSD + 2TB HDD |
| Max. Storage | Up to 200,000 Scanned Images |
| Monitor | 21.5"Color LED Screen (1920*1080P) |
| Operating Environment | |
| System Power | 220 VAC +/- 10% 50/60Hz 110 VAC +/- 10% 50/60Hz |
| Power Consumption | < 300W |
| Noise Level | < 58 dB(A) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 5-95%, Non-condensing |
