ZKX6040
SKU : ZKX6040
คำอธิบายสินค้าแบบย่อ

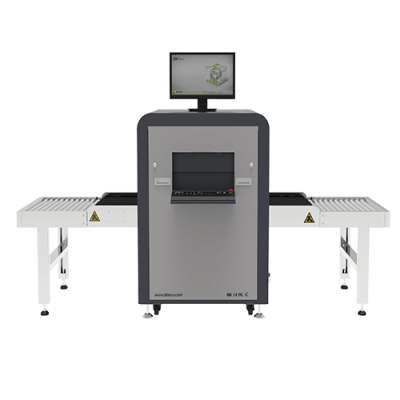

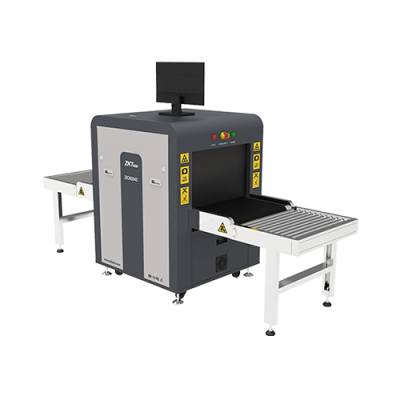

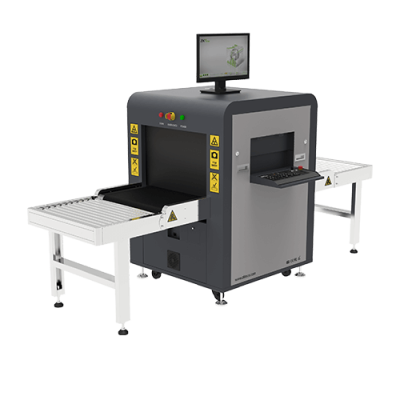

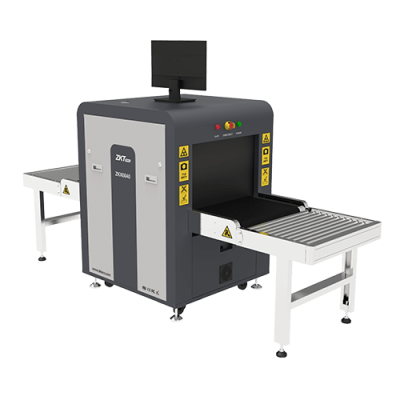

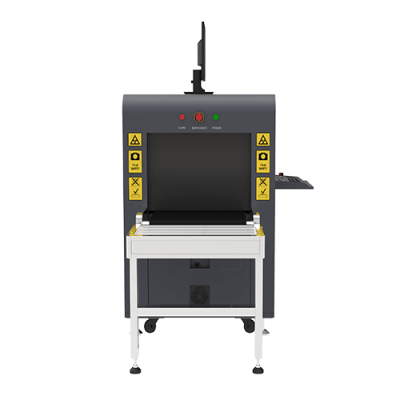

ZKX6040 X-ray Inspection System features a tunnel opening of 600 mm (W) x 400 mm (H) and is designed for scanning briefcases, carry-on luggage, and small cargo packages, its compact design and foldable keyboard make it highly mobile, allowing it to be placed in factories, shopping malls, transportation hubs, and similar locations.
The ZKX6040 X-ray Inspection System uses reliable, high-quality X-ray generators and detectors, as well as superior image algorithms, to provide clear scanning images. This allows operators to visually identify potential threat items.
พารามิเตอร์
ดาวน์โหลด
| General Specifications | |
|---|---|
| Conveyor Speed | 0.20 m/sec |
| Tunnel Dimensions (W*H) | 600mm × 400mm |
| Conveyor Load | 120kg (Adequate Load) |
| Conveyor Height | 680 mm |
| Detector | Dual-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
| Dimensions (L*W*H) | 1701mm × 910mm × 1305mm |
| Package Dimensions (L*W*H) | 2110mm × 1140mm × 1540mm |
| Gross Weight | 520 kg (with Package) |
| Net Weight | 420 kg |
| Film Safety | ASA/ISO1600 |
| Certifications | CE-EMC, CE-MD, FCC sDOC, FDA |
| X-ray Generator & Image Performance | |
| Anode Voltage | 140 kV |
| Tube Current | 0.5 mA |
| Wire Resolution | 36AWG |
| Steel Penetration | 30mm |
| Spatial Resolution | Horizontal Φ1.3mm / Vertical Φ1.3mm |
| Penetration Resolution | 32AWG |
| Generator Cooling | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-ray Converter Type | L-shaped Detector Line |
| Computer Specification | |
| Operating System | Windows 10 |
| RAM | 8 GB |
| Hard Drive | 128GB SSD + 2TB HDD |
| Max. Storage | Up to 200,000 Scanned Images |
| Operating Environment | |
| System Power | 220 VAC +/- 10% 50/60Hz 110 VAC +/- 10% 50/60Hz |
| Power Consumption | < 300W |
| Noise Level | < 58 dB(A) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Health & Safety | |
| Radiation Leak Dosage | < 0.5 μSv/h (10cm From the Surface) |
| Compliance | Compliant with Radiation Safety Standards (< 5 μSv/h) for Cabinet X-ray Systems |
