ZKX6550A
SKU : ZKX6550A
คำอธิบายสินค้าแบบย่อ

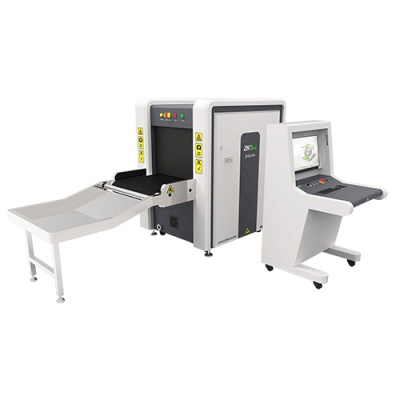

ZKX6550A X-ray Inspection System features a tunnel opening of 650 mm (W) x500 mm (H) and is designed for scanning briefcases, carry-on luggage, and small cargo packages, its equipped with a movable console to enhance work efficiency and operator comfort, allowing it to be placed in hotels, shopping malls, transportation hubs, and similar locations.
The ZKX6550A X-ray Inspection System uses reliable, high-quality X-ray generators and detectors, as well as superior image algorithms, to provide clear scanning images. This allows operators to visually identify potential threat items.
พารามิเตอร์
ดาวน์โหลด
Specifications | |
|---|---|
Tunnel Size | W655mm × H505mm |
Speed | 0.20 m/s |
Height of Transmission Belt | 700 mm |
Maximum Load | 180 kg (Adequate Distribution) |
Wire Resolution | 38 AWG |
Space Definition | Horizontal Φ1.0 mm / Vertical Φ2.0 mm |
Penetrate Definition | 34 AWG |
Penetration | 10 mm Steel Board |
Monitor | 21.5 Inch LED |
System Function | High Density Alert, Explosive / Drug Auxiliary Detect, TIP, Luggage Counter, Date/Time Display, User Management, Training |
Film Safety | ASA / ISO1600 Standard of Film Safety |
X-ray System | |
Tube Voltage | 80 kV |
Cooling | Seal Oil Cooling / 100% |
Single Inspection Dosage Rate | 1.0 μGy |
Radiation Leak Dosage | 0.1 μGy/h (5 cm From the Surface) |
Installation Specification | |
Size (L × W × H) | 2120 × 980 × 1381 mm |
Package Size (L × W × H) | 2240 × 1170 × 1755 mm |
Console Desk Size (L × W × H) | 805 × 900 × 1320 mm |
Package Weight | 640 kg + 100 kg (Console Desk) |
Power Consumption | 1 kVA |
Noise | 53.8 dB(A) |
