ZKX100100

SKU : ZKX100100

คำอธิบายสินค้าแบบย่อ

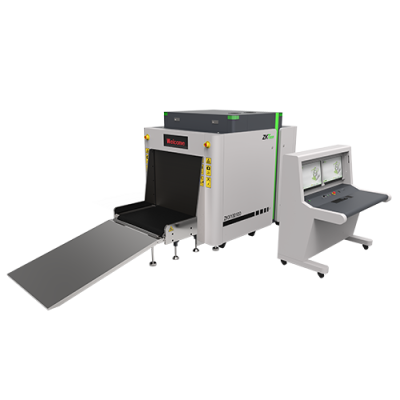

ZKX100100 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan the objects up to a size of 100 × 100cm. ZKX100100 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX100100 could o er clear scanning image, which allows operators to identify potential threat items visually. Also, ZKX100100 equipped with a lowered conveyor height to make it easier to put the luggage on. ZKX100100 has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password. With ergonomic modern design, ZKX100100 could help operators to identify suspicious items fast and accurately.

พารามิเตอร์
ดาวน์โหลด
Tunnel Size1000 mm × 1000 mm (W × H)
Conveyor Speed0.20 m/s
Conveyor Height300 mm
Maximum Load200 kg (Evenly Distributed)
Wire Resolution38 AWG
Spatial ResolutionHorizontal Φ1.0 mm / Vertical Φ1.0 mm
Penetration Resolution32 AWG
Penetration34 mm Steel Plate
Monitor21.5" LED × 2
System FunctionsHigh Density Alert, Explosive/Drug Auxiliary Detection, TIP, Baggage Counter, Date/Time Display, User Management, Training
Film SafetyASA / ISO1600 Film Safety Standard
X-Ray System
Tube Voltage160 kV
CoolingSealed Oil Cooling / 100%
Single Inspection Dosage Rate1.0 μGy
Radiation Leakage0.2 μGy/h (5 cm from external surface)
Installation Specifications
Dimensions (L × W × H)3384 × 1407 × 1866 mm
Console Dimensions (L × W × H)1320 × 900 × 1320 mm
Package Dimensions2600 × 1520 × 1920 mm
Package Weight1250 kg + 135 kg (Console)
Power Consumption1 kVA
Noise Level55.8 dB(A)
